Corrugation Plant
Offering you a complete choice of products which include face paper corrugating machine, printer slotter with rotary die, paper corrugated sheet cutting machine, single facer corrugation machine, carton box making plant and 5 layer fully automatic corrugation plant.
High-Lights Of This Model
BEST
QUALITY
HIGH
SPEED
100%
ACCURACY
100%
CAPACITY
Specification Details
Size
36″, 42″, 46″, 52″, 62″,72″
Weight
6.4 Ton (Approx)
Material
Mild Steel
Warranty
1 Year
Speed
35mtr/ min

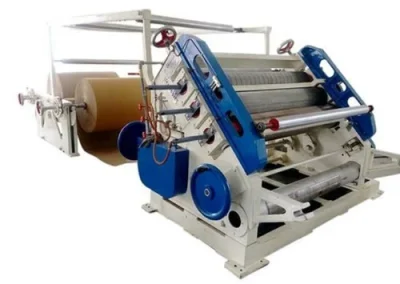

Single Facer Paper Corrugating Machine
Available sizes-36″, 42″, 46″, 52″, 62″,72″
Approx. Price: Rs 10.75 Lakh / Unit
Product Brochure
| Brand | Classic |
| Minimum Order Quantity | 1 Unit |
| Body Material | Mild Steel |
| Usage/Application | Box Making Machine |
| Colour | Blue and White |
| Country | Made In India |
| Automatic Grade | Semi-Automatic |
| Size | 1320 mm |
| Speed | 35mtr/ min |
| Frequency | 50 Hz |
| Voltage | 380V |
| Total Weight | 6.4 Ton (Approx) |
| Material Width | 1000mm |
| Effective Width | 780mm |
| Thickness | 0.6mm |
| Dimension | 9000mm x 1300mm x 1300mm |
We are the manufacturers of High Speed Corrugation Machine.
- Thickness: 0.3-0.6mm
- Speed of Machine: 30 to 35mtr/ min
Specification Details
Size
1200×2400, 1400×2400,1400×2600,1400×3000, 1600×2600, 1600×3000, 1800×2600, 1800×3000
Power
7.5 KW
Material
Mild Steel
Warranty
1 Year
Speed
2 Nos.

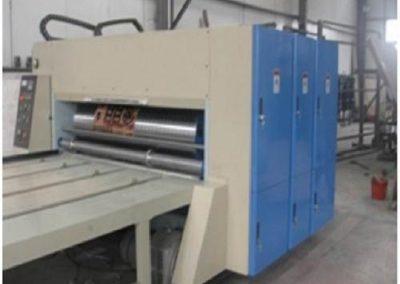

Two Color Printer Slotter With Rotary Die Cutter
Available sizes-1200×2400, 1400×2400,1400×2600,1400×3000, 1600×2600, 1600×3000, 1800×2600, 1800×3000
Approx. Price: Rs 23.75 Lakh / Piece
Product Brochure
| Brand | Classic |
| Minimum Order Quantity | 1 Unit |
| Body Material | Mild Steel |
| Usage/Application | Box Making Machine |
| Colour | Blue & White |
| Country | Made In India |
| Automatic Grade | Semi-Automatic |
| Size | 1400×2600 mm |
| Max Paper Coverage Area | 1470×2400 |
| Min Paper Coverage Area | 400×640 |
| Printing Plate Thckness | 7.2 |
| Speed | 60 to 80 |
| Power | 7.5 KW |
| Model | Synchronized |
We are engaged in offering Corrugated Board Machine to the clients.
- Triplex heating unit before glueing
- Online duplex pasting unit
- Heating cooling and drying chamber (consist of fourteen hot plates)
- Heavy duty pulls unit
- Online creasing and slitting unit
- Heavy duty cut off unit
Specification Details
Size
36″, 42″, 46″, 52″, 62″,72″
Frequency
50 Hz
Material
Mild Steel
Warranty
1 Year
Paper Size
1650mm

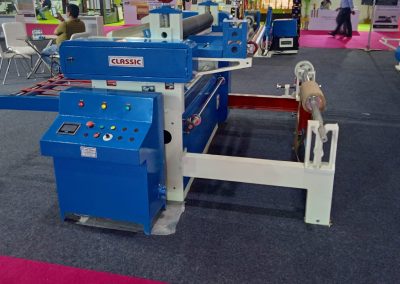

PLC Controlled Paper Roll to Sheet Machine
Available sizes-36″, 42″, 46″, 52″, 62″,72″
Approx. Price: Rs 5.5 Lakh / Unit
Product Brochure
| Brand | Classic |
| Minimum Order Quantity | 1 Unit |
| Body Material | Mild Steel |
| Usage/Application | Box Making Machine |
| Colour | Blue and White |
| Country | Made In India |
| Automatic Grade | Semi-Automatic |
| Size | 1320 mm |
| Frequency | 50 Hz |
| Cutting Speed | 300m/Min |
| Paper Size | 52″ |
| Cutting Accuracy | +/-0.4mm |
| Atmospheric Pressure | 0.8MPa |
| Body Material | Mild Steel |
Leveraging on our enriched industry experience, we are engaged in offering a wide gamut of Printing and Packaging Machines. Our wide range of products include Corrugation Machines, Reel Stand, Cutting Machines, Printing Machine, Gluer Machine and much more. These high quality products are renowned for their efficiency, durability, precision engineering, reliability, compact sizes and sturdy built. Our wide range of products is extensively used in diverse industries and is offered in various technical specifications.
